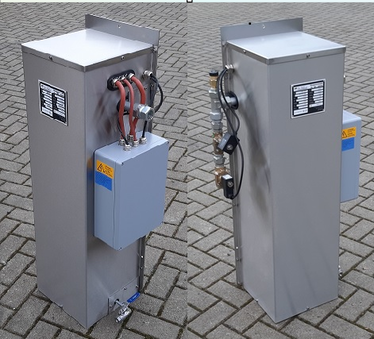

High-Capacity Vaporizers – PPE-TP-HC 240 & 320

• Fully automatic dry-running vaporizers with capacities of 240 kg/h and 320 kg/h
• Heating temperature control and monitoring via PT100 sensors
• Redundant flood protection
• Equipped with two solenoid valves, controlled via PT100
• Overheat protection with safety shutdown
• Electrical equipment compliant with DIN VDE 0100 for Ex Zone II

Key Technical Advantages of PPE-TP-HC High-Capacity Vaporizers:

• Constant regulation of temperature, pressure, flood protection, and capacity without the need for additional upstream or downstream equipment
• Extremely precise temperature control – the PT100 sensor is installed in the center of the vaporizer body for exact measurement
• Adjustable operating temperature, easily tailored to process requirements
• Separate temperature control for solenoid valves, allowing adjustment of the opening temperature
• Each vaporizer includes an integrated liquid separator, with drain connection and ball valve
• Visual operational monitoring – indicators display heating status (On/Off) and solenoid valve position (Open/Closed)
• Drain connection/valve – allows cleaning of the vaporizer at any time without disassembly
