Extremely reliable PD Meter for LPG, petroleum products for trucks and stationery applications
LC/SAMPI Meters
LC SAMPI Flow Meters and Measurement Systems – LPG & Ammonia
LC MA®- und MSA-Serie PD METERS
MA® and MSA Series Positive Displacement (PD) Flow Meters – Liquid Controls / LC SAMPI
The MA® and MSA series Positive Displacement (PD) meters from Liquid Controls in Class 10 and Class 12 are considered the industry standard for safe and highly accurate transfer of LPG (liquefied petroleum gas) and ammonia (NH₃), both in gaseous and liquefied states.
Their simple, robust design combined with consistently high accuracy is why operators worldwide rely on LC meters for reliable metering, billing, and transfer of liquefied hydrocarbon gases.
Key Advantages of LC/ SAMPI PD Flow Meters
- Long-Term Accuracy: The elimination of metal-to-metal contact within the measuring chamber ensures minimal drift over the meter’s lifespan, reducing calibration frequency, extending maintenance intervals, and increasing operational safety.
- Standards Compliance: Meets accuracy requirements per NIST and international metrology standards.
- Wide Temperature Range: Reliable and precise measurement of fluids from −40 °F (−40 °C) to +160 °F (71 °C).
- Wide Viscosity Range: Accurate handling of liquids from <1 cP (30 SSU) to 325,000 cP (1,500,000 SSU).
- Maximum Installation Flexibility: Right-angle design combined with standard or custom elbows and fittings allows seamless integration into varied installation conditions.
- High Pressure Rating: Designed for a maximum operating pressure of 350 psi (24 bar).

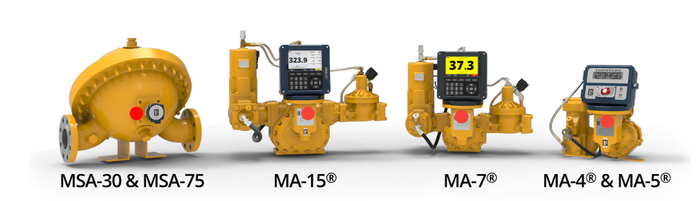

Available Models:
| Model | Flange Size | Flow Rate | Max Pressure |
|---|---|---|---|
| MA-4® | 1″ | 30 GPM (114 LPM) | 350 psi (24 bar, 2414 kPa) |
| MA-5® | 1.5″ | 60 GPM (227 LPM) | 350 psi (24 bar, 2414 kPa) |
| MA-7® | 2″ | 100 GPM (378 LPM) | 350 psi (24 bar, 2414 kPa) |
| MA-15® | 3″ | 200 GPM (756 LPM) | 350 psi (24 bar, 2414 kPa) |
| MSA-30 | 3″ | 350 GPM (1325 LPM) | 300 psi (20.7 bar, 2068 kPa) |
| MSA-75 | 4″ | 700 GPM (2650 LPM) | 300 psi (20.7 bar, 2068 kPa) |
M-Series Flow Meters and Measurement Systems from LC SAMPI – Suitable for a Wide Range of Applications

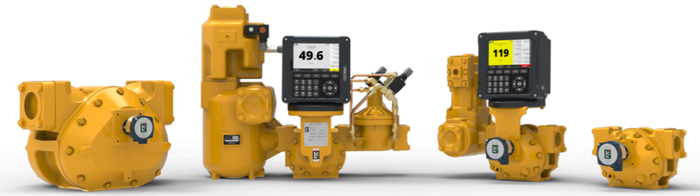

Positive Displacement (PD) Flow Meters from Liquid Controls / SAMPI
The PD meters from Liquid Controls / SAMPI have a long-standing reputation in the industry for accuracy, reliability, and durability in custody transfer applications for refined and alternative fuels. Their simple yet robust design, combined with consistently high measurement precision, is why customers worldwide rely on Liquid Controls meters for a wide range of custody transfer and process measurement applications.
Key Advantages of LC / SAMPI Meters and Measurement Systems:
- Long-term Accuracy: The absence of metal-to-metal contact within the measuring chamber ensures stable, long-term measurement accuracy with minimal drift, reducing the need for recalibration and extending the meter’s service life.
- Standards Compliance: Meets NIST requirements and international standards for measurement and custody transfer.
- Wide Temperature Range: Reliable operation from −40 °F (−40 °C) to +160 °F (71 °C).
- Wide Viscosity Range: Accurate measurement of fluids with viscosities from <30 SSU (<1 cP) up to 1,500,000 SSU (325,000 cP).
- Maximum Flexibility: Right-angle construction with standard or custom elbows and fittings allows for exceptional installation flexibility tailored to specific site requirements.
- High Pressure Rating: Designed for a maximum operating pressure of 150 psi (10.5 bar).
| meters class | Description / Application Medium | Lagermaterial |
|---|---|---|
| 1 | Refined petroleum products | Ni-Resist* |
| 2 | Aviation fuels and kerosene | Ni-Resist* |
| 3 | Liquid sugars, sweeteners, syrups, and vegetable oils | Ni-Resist* |
| 4 | Treated waters and solvents, where non-ferrous metals are not permitted | Carbon |
| 14 | Crude oil | Ni-Resist |
| 16 | General solvents | Carbon |
Ni-Resist – Nickel-containing austenitic cast iron material with high corrosion and wear resistance.
Model Range:
- M-5® – 1.5″ Flange, 60 GPM (227 LPM), 150 psi (10.3 bar, 1034 kPa)
- M-7® – 2″ Flange, 100 GPM (378 LPM), 150 psi (10.3 bar, 1034 kPa)
- M-10® – 2″ Flange, 150 GPM (567 LPM), 150 psi (10.3 bar, 1034 kPa)
- M-15® – 3″ Flange, 200 GPM (756 LPM), 150 psi (10.3 bar, 1034 kPa)
- M-25® – 3″ Flange, 300 GPM (1134 LPM), 150 psi (10.3 bar, 1034 kPa)
- M-30® – 4″ Flange, 350 GPM (1323 LPM), 150 psi (10.3 bar, 1034 kPa)
- M-40® – 4″ Flange, 450 GPM (1701 LPM), 150 psi (10.3 bar, 1034 kPa)
- M-60® – 4″ Flange, 600 GPM (2268 LPM), 150 psi (10.3 bar, 1034 kPa)
- M-80® – 6″ Flange, 800 GPM (3024 LPM), 150 psi (10.3 bar, 1034 kPa)
- MSAA-30 – 3″ Flange, 350 GPM (1325 LPM), 285 psi (19.7 bar, 1965 kPa)
- MSAA-40 – 3″ Flange, 450 GPM (1703 LPM), 285 psi (19.7 bar, 1965 kPa)
- MSAA-75 – 4″ Flange, 700 GPM (2650 LPM), 285 psi (19.7 bar, 1965 kPa)
- MSAA-120 – 6″ Flange, 1000 GPM (3785 LPM), 285 psi (19.7 bar, 1965 kPa)
