BLACKMER CRL Series Rotary Vane Pumps – Cavitation Line

These pumps are part of the Cavitation Line and provide flow rates from 5 to 22 US gpm (19 to 83 L/min). They are particularly suitable for recirculation systems and small-volume transfer applications.

The BLACKMER CRL models are designed for foot mounting on a common baseplate.

---

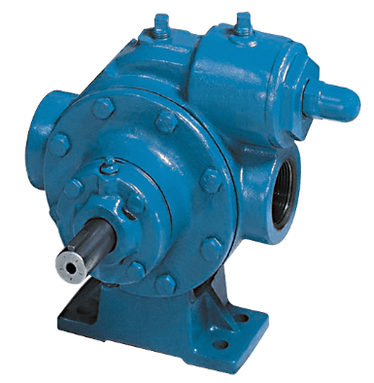

BLACKMER CRL High-Speed – Rotary Vane Pumps

High-speed ductile iron rotary vane pumps for liquid CO₂ applications.

The CRL High-Speed rotary vane pumps, part of the Cavitation Line, are durable, motor-driven pumps with flow rates of 5 to 22 US gpm (19–83 L/min). They are ideal for recirculation systems and small-volume transfer applications. The CRL models are designed for foot mounting on a shared baseplate.

---

Technical Features

• Connection options: 1.25- or 1.5-inch NPT female threads
• Equipment: internal safety valve, replaceable housing liner and end plates for easy overhaul of the pumping chamber
• CRLR 1.25 model: special liner for lower flow rates than the CRL 1.25 pump
• Materials: silicon carbide mechanical seals, laminated vanes
• Maximum differential pressure:

CRLR 1.25: 70 psi (4.83 bar)

CRL 1.25 and CRL 1.5: 100 psi (6.89 bar)

---

Delivery and Mounting

• Pumps can be delivered as fully assembled units, with or without a motor.
• For dimensions of the mounted pump units, see the catalog datasheets.

---

Fully Integrated Unit Assemblies

Blackmer offers preconfigured, prefabricated complete systems as ready-to-use pump solutions.

These units include:

• Motor
• Gearbox
• Baseplate
• Coupling guards
• CRL 1.5-inch rotary vane pump

Thanks to these preconfigured units, no alignment is required – the pump solution can be installed directly.

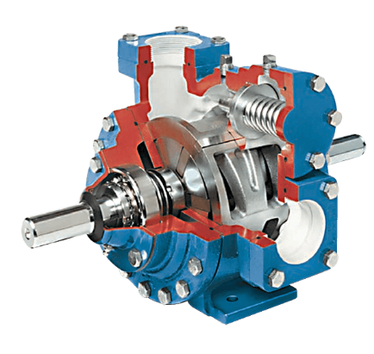

BLACKMER CRL 2–4 Inch Rotary Vane Pumps – Ductile Iron Pumps for Bulk Liquid CO₂ Transfer

The BLACKMER CRL pumps in 2, 3, and 4-inch sizes, part of the Cavitation Line, are widely used for robust bulk transfer and recirculation applications, such as:

• Industrial facilities
• Food processing systems
• Refrigeration systems
• Process plants
• Loading and unloading of transport vehicles

---

Technical Data

• Flow rate: 25 to 300 US gpm (95–1,134 L/min)
• Drive shaft: double-sided configuration for flexible positioning (clockwise or counterclockwise rotation)
• Equipment: internal safety valve, replaceable housing liner and end plates for easy overhaul of the pumping chamber
• Cavitation suppression: special liners reduce noise, vibration, and wear
• Materials: silicon carbide mechanical seals, laminated vanes
• Connections: NPT female-threaded flanges or welded flanges (see flange overview)
• Maximum differential pressure: 100 psi (6.89 bar) for all models

---

Delivery and Mounting Options

• Standard units: baseplate-mounted with worm gearbox or V-belt drive
• Assembled units: available from the factory, with or without a motor
• Alternative drives: PTO, hydraulic motor, or combustion engine
• Dimensions: see catalog datasheets

---

Fully Integrated Unit Assemblies

PPTEC-ENERGY offers preconfigured complete systems as ready-to-use pump solutions.

These units include:

• Motor
• Gearbox or V-belt
• Baseplate
• Coupling guards
• CRL rotary vane pump (2, 3, and 4 inches)

Thanks to the preconfigured design, no alignment is required – the pump solution can be installed directly.
